Product information

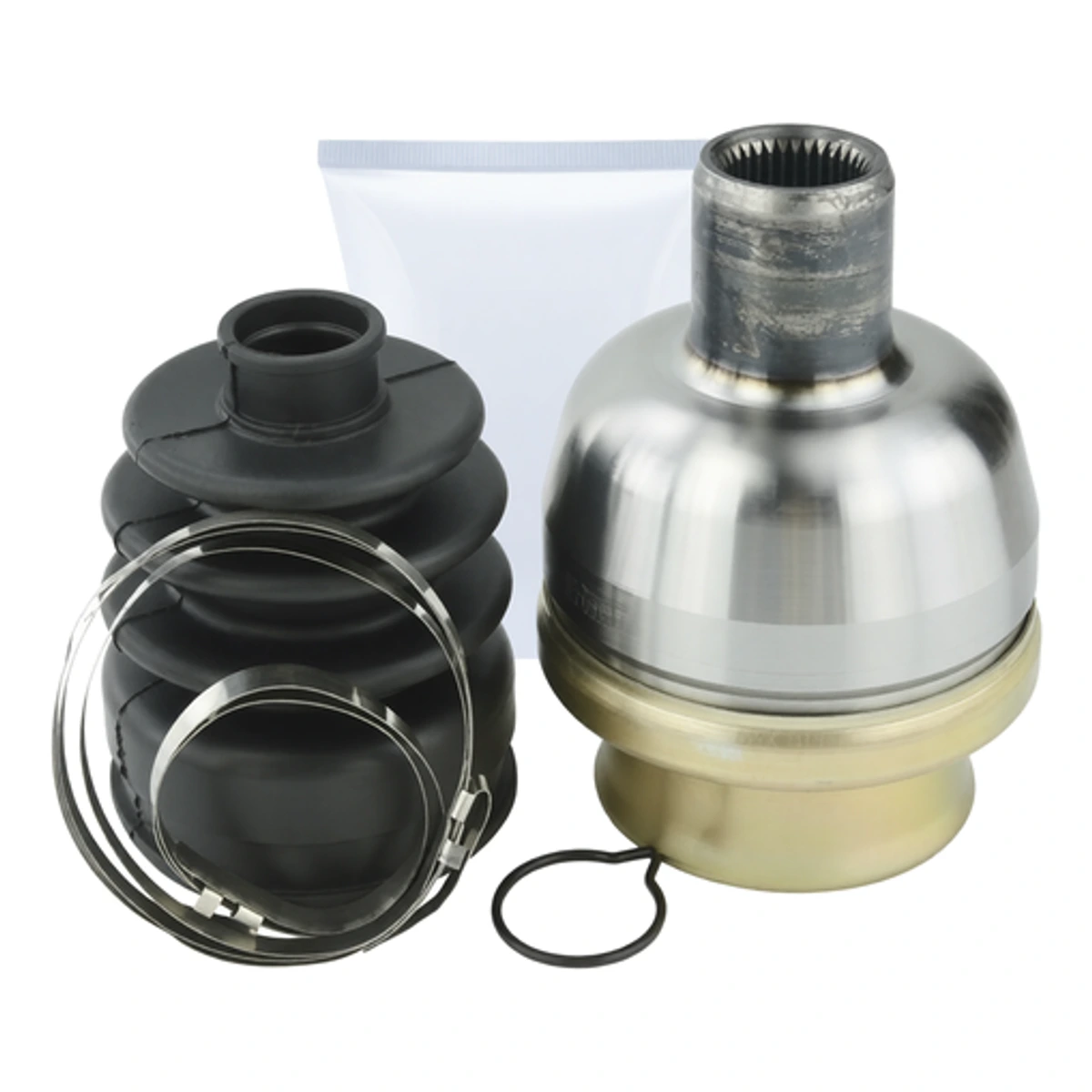

Inner CV joint for Vauxhall Astra MK IV Hatchback. Technical data: diameter 35 mm, inner splines 25, joint diameter 92 mm, total length 100 mm, outer diameter 91 mm, outer splines 34, seal ring diameter 35 mm, splines gearbox side 34, splines wheel side 34. Always check the fit before ordering, e.g. by OE number and dimensions.
Position
Inner
Seal diameter
35 mm
Inner splines
25
Outer splines
34
Diameter
35 mm
Joint diameter
92 mm
Total length
100 mm
Outer diameter
91 mm
Splines gearbox side
34
Splines wheel side
34
